200 PSI Max!
2-3 Days
Description
380C 200 PSI Chrome Compressor Kit (12V, 100% Duty @100 PSI, 55% Duty @200 PSI) - 38033 - C-Models
test item title (REVIEWS)
Related Items

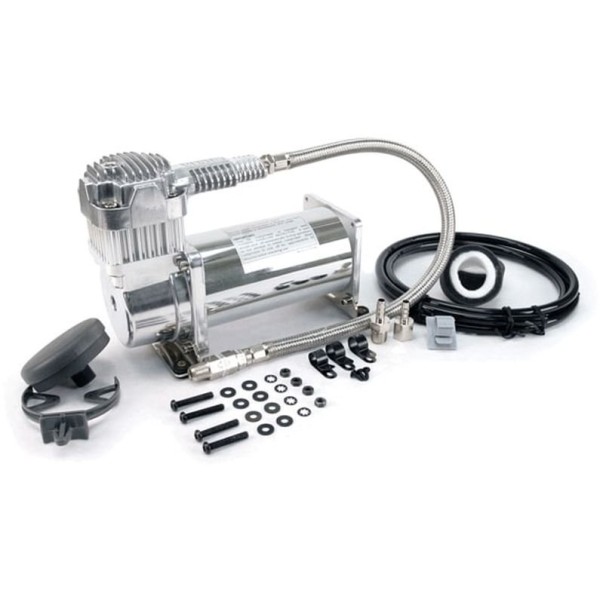

380C 200 PSI Chrome Compressor Kit (12V, 100% Duty @100 PSI, 55% Duty @200 PSI)
- Stock: 2-3 Days
- Brand: Viair
- Model: 380c
- SKU: VIAIR-38033
- UPC: 818114003233
- MPN: 38033
$215.35
Product Details | |
Manufacturer | Viair |
Model | 380C |
Part Number | 38033 |
Color / Finish | Chrome |
Compressor Specifications | |
CFM (without load) | 1.58 CFM |
CFM (@120 psi) | 0.78 CFM |
CFM (@150 psi) | 0.67 CFM |
CFM (@200 psi) | 0.49 CFM |
Duty Cycle | 100% @ 100 PSI (55% @ 200 PSI) |
Max. Pressure | 200 PSI |
Voltage | 12-Volt |
Max. Amperage | 23 Amps |
Dimensions | 9″L x 4″W x 6.75″H |
Weight | 8.75 lbs. |
Tank Fill Rates | |
2.5 Gallon Tank - 0 to 145 psi | 3 min. 30 sec. (± 10 sec.) |
2.5 Gallon Tank - 110 to 145 psi | 1 min. 10 sec. (± 05 sec.) |
2.5 Gallon Tank - 0 to 200 psi | 6 min. 05 sec. (± 10 sec.) |
2.5 Gallon Tank - 165 to 200 psi | 1 min. 40 sec. (± 05 sec.) |
5.0 Gallon Tank - 0 to 145 psi | 7 min. 20 sec. (± 10 sec.) |
5.0 Gallon Tank - 110 to 145 psi | 2 min. 25 sec. (± 05 sec.) |
5.0 Gallon Tank - 0 to 200 psi | 13 min. 25 sec. (± 15 sec.) |
5.0 Gallon Tank - 165 to 200 psi | 3 min. 39 sec. (± 10 sec.) |
