200 PSI Max!
Description

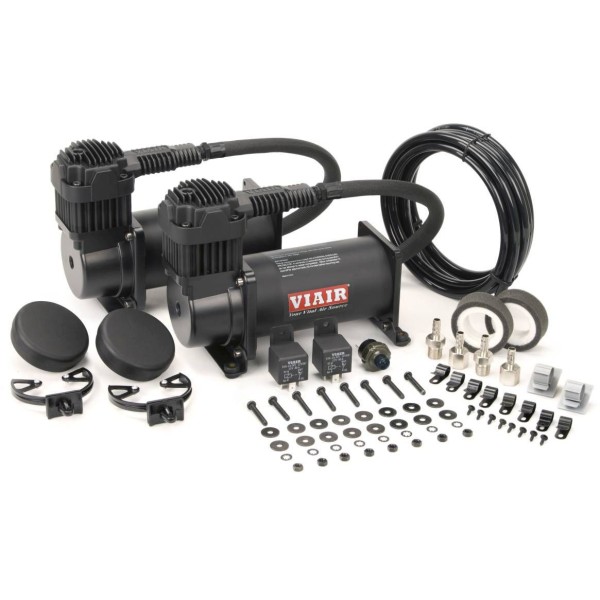

380C Dual Value Pack With Stealth Black Finish
380C Dual Value Packs from VIAIR come in three different finishes, allowing you to choose between air compressors with pewter, chrome, or stealth black finishes. The 380C delivers a maximum output of 200 PSI and has a 100% duty cycle. The 12-volt permanent magnetic motor hits 100% duty cycle at 100 PSI and 55% duty cycle at its maximum 200 PSI rating. Capable of filling 10-gallon air tanks, the 380C can fill a 2.5-gallon tank at maximum PSI in just 53 seconds and a 5-gallon tank at maximum PSI in just over 2 minutes.
test item title (REVIEWS)
Related Items
Viair 38036 380c Compressor Dual Pack, Stealth Black
- Stock: In Stock
- Brand: Viair
- Model: 380c
- SKU: VIAIR-38036
- UPC: 818114004629
- MPN: 38036
- 200 PSI / 2.54 CFM
- 165 PSI cut-on, 200 PSI cut-off pressure switch
- Remote air filter
- Stealth black finish
$332.95
Product Details | |
Manufacturer | Viair |
Model | 380C Dual Pack |
Part Number | 38036 |
Color / Finish | Stealth Black |
Prop 65 | |
Compressor Specifications | |
CFM (without load) | 2.54 CFM |
CFM (@120 psi) | 1.40 CFM |
CFM (@150 psi) | 1.19 CFM |
CFM (@175 psi) | 1.06 CFM |
CFM (@200 psi) | 0.86 CFM |
Duty Cycle | 100% @ 100 PSI (55% @ 200 PSI) |
Max. Pressure | 200 PSI |
Voltage | 12-Volt |
Max. Amperage | 44 Amps (Combined) |
Dimensions | 9″L x 4″W x 6.75″H (Each Unit) |
Weight | 17.50 lbs. |
Tank Fill Rates | |
2.5 Gallon Tank - 0 to 200 psi | 3 min. 13 sec. (± 10 sec.) |
2.5 Gallon Tank - 165 to 200 psi | 53 sec. (± 05 sec.) |
5.0 Gallon Tank - 0 to 200 psi | 7 min. 11 sec. (± 15 sec.) |
5.0 Gallon Tank - 165 to 200 psi | 2 min. 06 sec. (± 10 sec.) |
