Air House 1 Single bellow air bag designed for rear suspension 2" compressed, 7" extended 5.87" diameter 1/2" Port

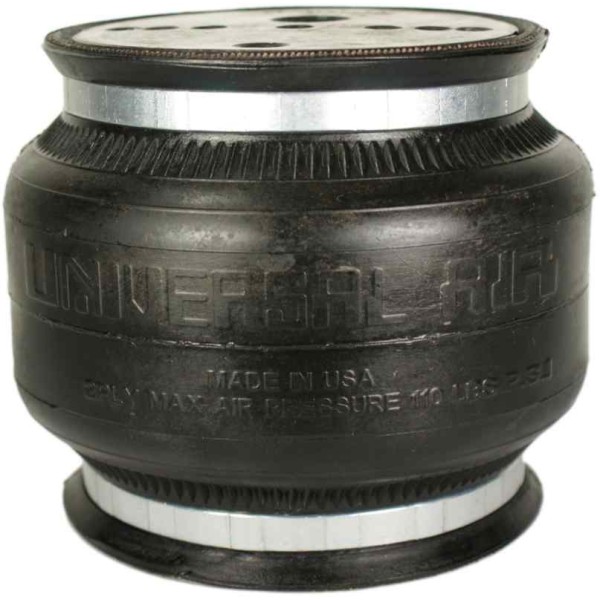

"Air House 1" Single Bellow 2500 Air Bag - 3/8" Port
- Stock: In Stock
- Brand: Universal Air
- Model: 02-2500-12
$94.99
- Single Bellow With 7" Lift
- 1/2" NPT Port
- Made In The USA
Product Details | |
Manufacturer | Universal Air |
Model | 02-2500-12 |
Series | Air House 1 |
Part Number | 02-2500-12 |
Color / Finish | |
Prop 65 | test 65 |
Air Bags Specifications | |
Port Size | 1/2 in. NPT |
Rated Pressure | 110 PSI |
Bag Diameter | 5.875 in. |
Minimum Height Collapsed | 2.0 in. |
Maximum Height Inflated | 7.0 in. |
Internal Bump Stop | No |
Top Plate Mount | 3/8 in.-16 Four |
Bottom Plate Mount | 3/8 in.-16 Three |
